盈錫精密工業股份有限公司

精密平衡螺帽 SGL系列

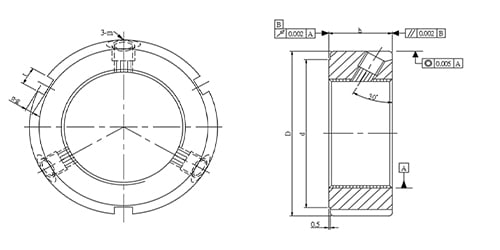

SGL-F


SGL-F 牙腹鎖定鎖
此型螺帽鎖定方式為螺紋30°角，三點式鎖定；其優異的鎖定設計，能使固定銅上之螺紋，完全契合於公螺紋上，使其防鬆效果完美無缺，更因為其30°角的設計，減少了因為鎖緊螺絲因而產生的力距。 螺帽本身之內螺紋、端面、背面、外圓都經過精密研磨加工，可符合高速旋轉所要求的精度。

  • 材質：SCM440(42CrMo4)調質
  • 平面偏擺：0.002mm
  • 平行度：0.002mm
  • 螺紋精度：ISO 4H精密研磨
  • 硬度：HRC 28° ~ 32°
  • 同心度：0.005mm

Thread D h d n-t x g m MAX Nm CAD Download
SGL-F M14 x 1.5 30 14 25 3 - 4 x 2 M5 4.5 x_t
SGL-F M15 x 1 30 14 25 3 - 4 x 2 M5 4.5 x_t
SGL-F M16 x 1.5 30 14 25 3 - 4 x 2 M5 4.5 x_t
SGL-F M17 x 1 32 16 27 3 - 4 x 2 M5 4.5 x_t
SGL-F M18 x 1.5 32 16 27 3 - 4 x 2 M5 4.5 x_t
SGL-F M20 x 1 38 16 33 3 - 4 x 2 M6 4.5 x_t
SGL-F M20 x 1.5 38 16 33 3 - 4 x 2 M6 8.0 x_t
SGL-F M22 x 1.5 38 16 33 3 - 4 x 2 M6 8.0 x_t
SGL-F M24 x 1.5 38 18 33 3 - 5 x 2 M6 8.0 x_t
SGL-F M25 x 1.5 38 18 33 3 - 5 x 2 M6 8.0 x_t
SGL-F M27 x 1.5 40 18 35 3 - 5 x 2 M6 8.0 x_t
SGL-F M30 x 1.5 45 18 40 3 - 5 x 2 M6 8.0 x_t
SGL-F M33 x 1.5 50 18 45 3 - 5 x 2 M6 8.0 x_t
SGL-F M35 x 1.5 52 18 47 3 - 5 x 2 M8 18.0 x_t
SGL-F M36 x 1.5 52 18 47 3 - 5 x 2 M8 18.0 x_t
SGL-F M39 x 1.5 58 20 52 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M40 x 1.5 58 20 52 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M42 x 1.5 62 20 56 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M45 x 1.5 65 20 59 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M48 x 1.5 70 20 64 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M50 x 1.5 70 20 64 3 - 6 x 2.5 M8 18.0 x_t
SGL-F M52 x 1.5 73 22 66 3 - 7 x 3 M8 18.0 x_t
SGL-F M55 x 2 75 22 68 3 - 7 x 3 M8 18.0 x_t
SGL-F M56 x 2 75 22 68 3 - 7 x 3 M8 18.0 x_t
SGL-F M60 x 2 80 22 73 3 - 7 x 3 M8 18.0 x_t
SGL-F M64 x 2 85 22 78 3 - 7 x 3 M8 18.0 x_t
SGL-F M65 x 2 85 22 78 3 - 7 x 3 M8 18.0 x_t
SGL-F M68 x 2 92 24 84 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M70 x 2 92 24 84 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M72 x 2 94 24 86 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M75 x 2 98 24 90 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M76 x 2 98 24 90 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M80 x 2 105 24 96 3 - 8 x 3.5 M8 18.0 x_t
SGL-F M85 x 2 110 24 102 6 - 8 x 3.5 M8 18.0 x_t
SGL-F M90 x 2 120 26 108 6 - 10 x 4 M8 18.0 x_t
SGL-F M95 x 2 125 26 113 6 - 10 x 4 M8 18.0 x_t
SGL-F M100 x 2 130 26 118 6 - 10 x 4 M8 18.0 x_t
SGL-F M105 x 2 140 28 125 6 - 10 x 4 M10 35.0 x_t
SGL-F M110 x 2 145 28 132 6 - 10 x 4 M10 35.0 x_t
SGL-F M115 x 2 150 28 137 6 - 10 x 4 M10 35.0 x_t
SGL-F M120 x 2 155 30 142 6 - 12 x 5 M10 35.0 x_t
SGL-F M125 x 2 160 30 147 6 - 12 x 5 M10 35.0 x_t
SGL-F M130 x 2 165 30 152 6 - 12 x 5 M10 35.0 x_t
SGL-F M135 x 2 175 32 160 6 - 12 x 5 M10 35.0 x_t
SGL-F M140 x 2 180 32 165 6 - 12 x 5 M10 35.0 x_t
SGL-F M145 x 2 190 32 175 6 - 12 x 5 M10 35.0 x_t
SGL-F M150 x 2 195 32 180 6 - 12 x 5 M10 35.0 x_t
SGL-F M155 x 3 200 34 180 6 - 14 x 6 M10 35.0 x_t
SGL-F M160 x 3 210 34 190 6 - 14 x 6 M10 35.0 x_t
SGL-F M165 x 3 210 34 190 6 - 14 x 6 M10 35.0 x_t
SGL-F M170 x 3 220 34 200 6 - 14 x 6 M10 35.0 x_t
SGL-F M180 x 3 230 36 205 6 - 16 x 7 M12 60.0 x_t
SGL-F M190 x 3 240 36 215 6 - 16 x 7 M12 60.0 x_t
SGL-F M200 x 3 250 38 225 6 - 16 x 7 M12 60.0 x_t

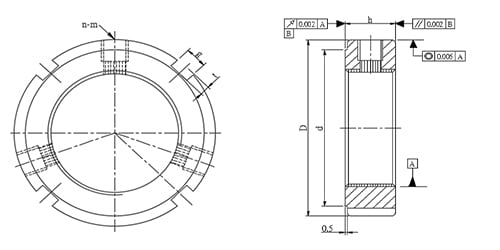

SGL-R


SGL-R 徑向鎖定
此型螺帽鎖定方式為徑向三點式鎖定，其厚度相較其他產品為薄，適用於螺帽厚度空間受到限制，無法使用其他產品之情況，螺帽本身之內螺紋、端面、背面、外圓都經過精密研磨加工，可符合高速旋轉所要求的精度。

  • 材質：SCM440(42CrMo4)調質
  • 平面偏擺：0.002mm
  • 平行度：0.002mm
  • 螺紋精度：ISO 4H精密研磨
  • 硬度：HRC 28° ~ 32°
  • 同心度：0.005mm

Thread D h g t d n - m MAX Nm CAD Download
SGL-R M8 x 0.75 16 8 3 2 11 2 - M4 2.2 x_t
SGL-R M10 x 0.75 18 8 3 2 13 2 - M4 2.2 x_t
SGL-R M10 x 1 18 8 3 2 13 2 - M4 2.2 x_t
SGL-R M12 x 1 20 8 3 2 15 2 - M4 2.2 x_t
SGL-R M12 x 1.25 20 8 3 2 15 2 - M4 2.2 x_t
SGL-R M14 x 1.5 25 8 3 2 20 2 - M4 2.2 x_t
SGL-R M15 x 1 25 8 3 2 20 2 - M4 2.2 x_t
SGL-R M16 x 1.5 28 10 4 2 23 2 - M5 4.5 x_t
SGL-R M17 x 1 28 10 4 2 23 2 - M5 4.5 x_t
SGL-R M18 x 1.5 30 10 4 2 25 2 - M5 4.5 x_t
SGL-R M20 x 1 32 10 4 2 27 3 - M5 4.5 x_t
SGL-R M20 x 1.5 32 10 4 2 27 3 - M5 4.5 x_t
SGL-R M22 x 1.5 35 10 4 2 30 3 - M5 4.5 x_t
SGL-R M24 x 1.5 38 12 5 2 33 3 - M6 8.0 x_t
SGL-R M25 x 1.5 38 12 5 2 33 3 - M6 8.0 x_t
SGL-R M27 x 1.5 42 12 5 2 37 3 - M6 8.0 x_t
SGL-R M30 x 1.5 45 12 5 2 40 3 - M6 8.0 x_t
SGL-R M33 x 1.5 52 12 5 2 45 3 - M6 8.0 x_t
SGL-R M35 x 1.5 52 12 5 2 47 3 - M6 8.0 x_t
SGL-R M36 x 1.5 55 14 6 2.5 49 3 - M6 8.0 x_t
SGL-R M39 x 1.5 58 14 6 2.5 52 3 - M6 8.0 x_t
SGL-R M40 x 1.5 58 14 6 2.5 52 3 - M6 8.0 x_t
SGL-R M42 x 1.5 62 14 6 2.5 56 3 - M6 8.0 x_t
SGL-R M45 x 1.5 65 14 6 2.5 59 3 - M6 8.0 x_t
SGL-R M48 x 1.5 68 14 6 2.5 62 3 - M6 8.0 x_t
SGL-R M50 x 1.5 70 14 6 2.5 64 3 - M8 18.0 x_t
SGL-R M52 x 1.5 73 16 7 3 66 3 - M8 18.0 x_t
SGL-R M55 x 2 75 16 7 3 68 3 - M8 18.0 x_t
SGL-R M56 x 2 77 16 7 3 70 3 - M8 18.0 x_t
SGL-R M60 x 2 80 16 7 3 73 3 - M8 18.0 x_t
SGL-R M64 x 2 85 16 7 3 78 3 - M8 18.0 x_t
SGL-R M65 x 2 85 16 7 3 78 3 - M8 18.0 x_t
SGL-R M68 x 2 92 18 8 3.5 84 3 - M8 18.0 x_t
SGL-R M70 x 2 92 18 8 3.5 84 3 - M8 18.0 x_t
SGL-R M72 x 2 95 18 8 3.5 86 3 - M8 18.0 x_t
SGL-R M75 x 2 98 18 8 3.5 90 3 - M8 18.0 x_t
SGL-R M76 x 2 100 18 8 3.5 92 3 - M8 18.0 x_t
SGL-R M80 x 2 105 18 8 3.5 96 3 - M8 18.0 x_t
SGL-R M85 x 2 110 18 8 3.5 102 3 - M8 18.0 x_t
SGL-R M90 x 2 120 20 10 4 108 3 - M8 18.0 x_t
SGL-R M95 x 2 125 20 10 4 113 3 - M8 18.0 x_t
SGL-R M100 x 2 130 20 10 4 118 3 - M8 18.0 x_t
SGL-R M105 x 2 140 22 12 5 125 3 - M8 18.0 x_t
SGL-R M110 x 2 145 22 12 5 132 3 - M8 18.0 x_t
SGL-R M115 x 2 150 22 12 5 137 3 - M8 18.0 x_t
SGL-R M120 x 2 155 24 12 5 142 3 - M8 18.0 x_t
SGL-R M125 x 2 160 24 12 5 147 3 - M8 18.0 x_t
SGL-R M130 x 2 165 24 12 5 152 3 - M8 18.0 x_t
SGL-R M135 x 2 175 26 14 6 160 3 - M10 35.0 x_t
SGL-R M140 x 2 180 26 14 6 165 3 - M10 35.0 x_t
SGL-R M145 x 2 190 26 14 6 175 3 - M10 35.0 x_t
SGL-R M150 x 2 195 26 14 6 180 3 - M10 35.0 x_t
SGL-R M155 x 3 200 28 16 7 180 3 - M10 35.0 x_t
SGL-R M160 x 3 210 28 16 7 190 3 - M10 35.0 x_t
SGL-R M165 x 3 210 28 16 7 190 3 - M10 35.0 x_t
SGL-R M170 x 3 220 28 16 7 200 3 - M10 35.0 x_t
SGL-R M180 x 3 230 30 18 8 205 3 - M12 60.0 x_t
SGL-R M190 x 3 240 30 18 8 215 3 - M12 60.0 x_t
SGL-R M200 x 3 250 32 18 8 225 3 - M12 60.0 x_t

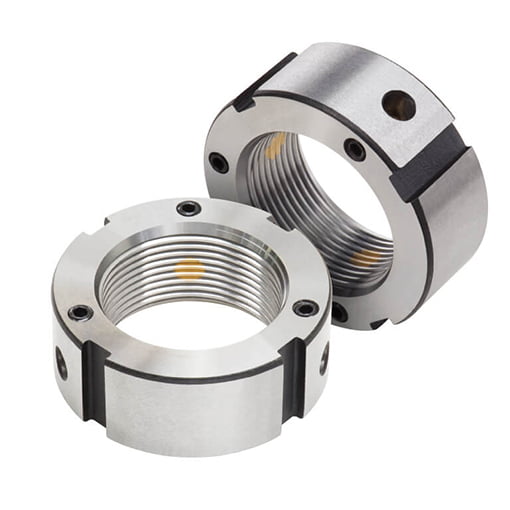

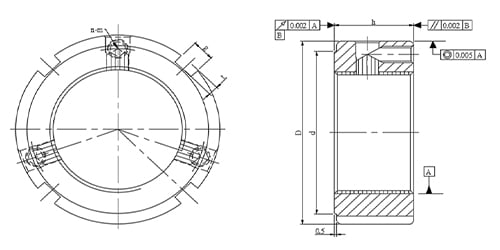

SGL-A


SGL-A 軸向鎖定
此型螺帽鎖定方式為軸向三點式鎖定，其厚度與SGL-F系列相同，軸向三點式鎖定為其特點，適用於裝配工作的特殊環境限制。 螺帽本身之內螺紋、端面、背面、外圓都經過精密研磨加工，可符合高速旋轉所要求的精度。

  • 材質：SCM440(42CrMo4)調質
  • 平面偏擺：0.002mm
  • 平行度：0.002mm
  • 螺紋精度：ISO 4H精密研磨
  • 硬度：HRC 28° ~ 32°
  • 同心度：0.005mm

Thread D h g t d n - m MAX Nm CAD Download
SGL-A M14 x 1.5 30 14 4 2 25 2 - M4 2.2 x_t
SGL-A M15 x 1 30 14 4 2 25 2 - M4 2.2 x_t
SGL-A M16 x 1.5 30 14 4 2 25 2 - M4 2.2 x_t
SGL-A M17 x 1 32 16 4 2 27 2 - M4 2.2 x_t
SGL-A M18 x 1.5 32 16 4 2 27 3 - M4 2.2 x_t
SGL-A M20 x 1 38 16 4 2 33 3 - M4 2.2 x_t
SGL-A M20 x 1.5 38 16 4 2 33 3 - M4 2.2 x_t
SGL-A M22 x 1.5 38 16 4 2 33 3 - M4 2.2 x_t
SGL-A M24 x 1.5 38 18 5 2 33 3 - M4 2.2 x_t
SGL-A M25 x 1.5 38 18 5 2 33 3 - M4 2.2 x_t
SGL-A M27 x 1.5 40 18 5 2 35 3 - M4 2.2 x_t
SGL-A M30 x 1.5 45 18 5 2 40 3 - M4 2.2 x_t
SGL-A M33 x 1.5 50 18 5 2 45 3 - M4 2.2 x_t
SGL-A M35 x 1.5 52 18 5 2 47 3 - M6 8.0 x_t
SGL-A M36 x 1.5 52 18 5 2 47 3 - M6 8.0 x_t
SGL-A M39 x 1.5 58 20 6 2.5 52 3 - M6 8.0 x_t
SGL-A M40 x 1.5 58 20 6 2.5 52 3 - M6 8.0 x_t
SGL-A M42 x 1.5 62 20 6 2.5 56 3 - M6 8.0 x_t
SGL-A M45 x 1.5 65 20 6 2.5 59 3 - M6 8.0 x_t
SGL-A M48 x 1.5 70 20 6 2.5 64 3 - M6 8.0 x_t
SGL-A M50 x 1.5 70 20 6 2.5 64 3 - M6 8.0 x_t
SGL-A M52 x 1.5 73 22 7 3 66 3 - M6 8.0 x_t
SGL-A M55 x 2 75 22 7 3 68 3 - M6 8.0 x_t
SGL-A M56 x 2 75 22 7 3 68 3 - M6 8.0 x_t
SGL-A M60 x 2 80 22 7 3 73 3 - M6 8.0 x_t
SGL-A M64 x 2 85 22 7 3 78 3 - M6 8.0 x_t
SGL-A M65 x 2 85 22 7 3 78 3 - M6 8.0 x_t
SGL-A M68 x 2 92 24 8 3.5 84 3 - M8 18.0 x_t
SGL-A M70 x 2 92 24 8 3.5 84 3 - M8 18.0 x_t
SGL-A M72 x 2 94 24 8 3.5 86 3 - M8 18.0 x_t
SGL-A M75 x 2 98 24 8 3.5 90 3 - M8 18.0 x_t
SGL-A M76 x 2 98 24 8 3.5 90 3 - M8 18.0 x_t
SGL-A M80 x 2 105 24 8 3.5 96 3 - M8 18.0 x_t
SGL-A M85 x 2 110 24 8 3.5 102 3 - M8 18.0 x_t
SGL-A M90 x 2 120 26 10 4 108 3 - M8 18.0 x_t
SGL-A M95 x 2 125 26 10 4 113 3 - M8 18.0 x_t
SGL-A M100 x 2 130 26 10 4 118 3 - M8 18.0 x_t
SGL-A M105 x 2 140 28 12 5 125 3 - M8 18.0 x_t
SGL-A M110 x 2 145 28 12 5 132 3 - M8 18.0 x_t
SGL-A M115 x 2 150 28 12 5 137 3 - M8 18.0 x_t
SGL-A M120 x 2 155 30 12 5 142 3 - M8 18.0 x_t
SGL-A M125 x 2 160 30 12 5 147 3 - M8 18.0 x_t
SGL-A M130 x 2 165 30 12 5 152 3 - M8 18.0 x_t
SGL-A M135 x 2 175 32 14 6 160 3 - M10 35.0 x_t
SGL-A M140 x 2 180 32 14 6 165 3 - M10 35.0 x_t
SGL-A M145 x 2 190 32 14 6 175 3 - M10 35.0 x_t
SGL-A M150 x 2 195 32 14 6 180 3 - M10 35.0 x_t
SGL-A M155 x 3 200 34 16 7 180 3 - M10 35.0 x_t
SGL-A M160 x 3 210 34 16 7 190 3 - M10 35.0 x_t
SGL-A M165 x 3 210 34 16 7 190 3 - M10 35.0 x_t
SGL-A M170 x 3 220 34 16 7 200 3 - M10 35.0 x_t
SGL-A M180 x 3 230 36 18 8 205 3 - M12 60.0 x_t
SGL-A M190 x 3 240 36 18 8 215 3 - M12 60.0 x_t
SGL-A M200 x 3 250 38 18 8 225 3 - M12 60.0 x_t

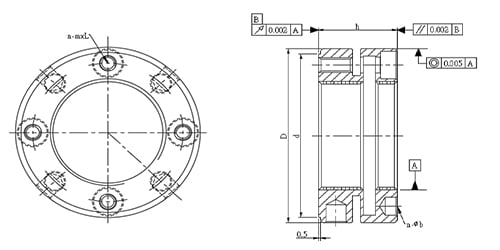

SGL-K


SGL-K 縮緊鎖定
此型螺帽鎖定方式為利用鋼材本身的彈性，以軸向鎖固，強制鎖定。 本產品特別針對，工作環境惡劣螺帽易鬆脫的場合，其鎖定能力為傳統螺帽3倍以上。螺帽本身之內螺紋、端面、背面、外圓都經過精密研磨加工，可符合高速旋轉所要求的精度。

  • 材質：SCM440(42CrMo4)調質
  • 平面偏擺：0.002mm
  • 平行度：0.002mm
  • 螺紋精度：ISO 4H精密研磨
  • 硬度：HRC 28° ~ 32°
  • 同心度：0.005mm

Thread D h d n - m x L n b c MAX Nm CAD Download
SGL-K M16 x 1.5 34 18 29 4 - M4 x 12 4 4 24 3.5 x_t
SGL-K M17 x 1 37 18 32 4 - M4 x 12 4 4 26 3.5 x_t
SGL-K M18 x 1.5 38 18 33 4 - M4 x 12 4 4 28 3.5 x_t
SGL-K M20 x 1 40 18 35 4 - M4 x 12 4 4 30 3.5 x_t
SGL-K M20 x 1.5 40 18 35 4 - M4 x 12 4 4 30 3.5 x_t
SGL-K M22 x 1.5 42 18 37 4 - M4 x 12 4 4 32 3.5 x_t
SGL-K M24 x 1.5 44 18 39 4 - M4 x 12 4 4 34 3.5 x_t
SGL-K M25 x 1.5 45 20 40 4 - M4 x 14 4 5 35 3.5 x_t
SGL-K M26 x 1.5 45 20 40 4 - M4 x 14 4 5 35 3.5 x_t
SGL-K M28 x 1.5 46 20 43 4 - M4 x 14 4 5 37 3.5 x_t
SGL-K M30 x 1.5 48 20 45 4 - M4 x 14 4 5 39 3.5 x_t
SGL-K M32 x 1.5 50 22 47 4 - M4 x 16 4 5 41 3.5 x_t
SGL-K M35 x 1.5 53 22 50 4 - M4 x 16 4 5 44 3.5 x_t
SGL-K M38 x 1.5 56 22 53 4 - M4 x 16 4 5 47 3.5 x_t
SGL-K M40 x 1.5 58 22 55 4 - M4 x 16 4 5 49 3.5 x_t
SGL-K M42 x 1.5 60 22 55 4 - M4 x 16 4 5 51 3.5 x_t
SGL-K M45 x 1.5 68 22 63 6 - M4 x 18 6 6 57 3.5 x_t
SGL-K M48 x 1.5 69 25 65 6 - M4 x 18 6 6 58 3.5 x_t
SGL-K M50 x 1.5 70 25 66 6 - M4 x 18 6 6 60 3.5 x_t
SGL-K M52 x 1.5 72 25 68 6 - M4 x 18 6 6 62 3.5 x_t
SGL-K M55 x 1.5 75 25 71 6 - M4 x 18 6 6 65 3.5 x_t
SGL-K M55 x 2 75 25 71 6 - M4 x 18 6 6 65 3.5 x_t
SGL-K M58 x 1.5 82 26 77 6 - M5 x 20 6 6 70 4.5 x_t
SGL-K M60 x 1.5 84 26 79 6 - M5 x 20 6 6 72 4.5 x_t
SGL-K M60 x 2 84 26 79 6 - M5 x 20 6 6 72 4.5 x_t
SGL-K M62 x 1.5 86 28 82 6 - M5 x 20 6 6 75 4.5 x_t
SGL-K M65 x 1.5 88 28 84 6 - M5 x 20 6 6 77 4.5 x_t
SGL-K M65 x 2 88 28 84 6 - M5 x 20 6 6 77 4.5 x_t
SGL-K M68 x 1.5 93 28 87 6 - M5 x 20 6 7 80 4.5 x_t
SGL-K M70 x 1.5 95 28 89 6 - M5 x 20 6 7 82 4.5 x_t
SGL-K M70 x 2 95 28 89 6 - M5 x 20 6 7 82 4.5 x_t
SGL-K M72 x 1.5 97 28 91 6 - M5 x 20 6 7 84 4.5 x_t
SGL-K M75 x 1.5 100 28 94 6 - M5 x 20 6 7 87 4.5 x_t
SGL-K M75 x 2 100 28 94 6 - M5 x 20 6 7 87 4.5 x_t
SGL-K M80 x 2 110 32 103 6 - M6 x 22 6 8 95 8 x_t
SGL-K M85 x 2 115 32 108 6 - M6 x 22 6 8 100 8 x_t
SGL-K M90 x 2 120 32 113 6 - M6 x 22 6 8 105 8 x_t
SGL-K M95 x 2 125 32 118 6 - M6 x 22 6 8 110 8 x_t
SGL-K M100 x 2 130 32 123 6 - M6 x 22 6 8 115 8 x_t
SGL-K M105 x 2 135 32 128 6 - M6 x 22 6 8 120 8 x_t
SGL-K M110 x 2 140 32 133 6 - M6 x 22 6 8 125 8 x_t
SGL-K M115 x 2 145 34 137 6 - M6 x 22 6 8 130 8 x_t
SGL-K M120 x 2 155 36 146 6 - M6 x 25 6 8 136 8 x_t
SGL-K M125 x 2 160 36 150 6 - M6 x 25 6 8 140 8 x_t
SGL-K M130 x 2 165 36 155 6 - M6 x 25 6 8 148 8 x_t
SGL-K M140 x 2 180 38 168 8 - M6 x 25 8 10 160 8 x_t
SGL-K M150 x 2 190 38 178 8 - M6 x 25 8 10 170 8 x_t
SGL-K M160 x 3 205 40 190 8 - M8 x 30 8 10 178 18 x_t
SGL-K M170 x 3 215 40 200 8 - M8 x 30 8 10 193 18 x_t
SGL-K M180 x 3 230 40 213 8 - M8 x 30 8 10 205 18 x_t
SGL-K M190 x 3 240 40 223 8 - M8 x 30 8 10 215 18 x_t
SGL-K M200 x 3 245 40 230 8 - M8 x 30 8 10 223 18 x_t

聯繫我們

若您有任何的建議或指教，請留下寶貴資訊，我們會儘快回覆您。

詢問會員
盈錫精密工業股份有限公司
詢問產品

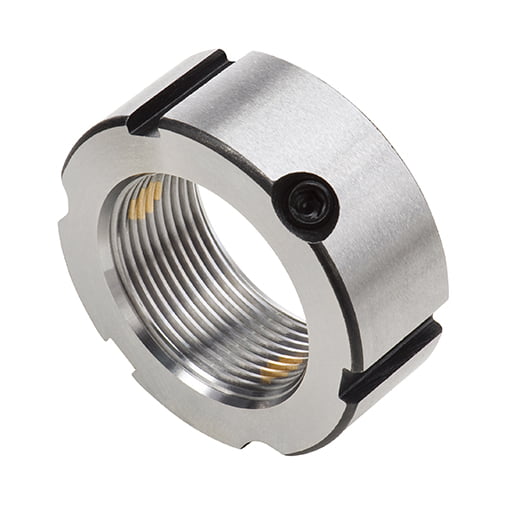

精密平衡螺帽 SGL系列
※公司
※聯絡人
※聯絡電話
※E-mail
地址
※詢問內容
